TRUCК CRANE KTA-90

Lifting capacity,t-90

Lifting height,m-28,0

Boom outreach,m-30,0

Boom-knuckle type

Base trucks



  • Scania
  • MAN



Technical parametersLifting capacity chartAdvantages & optionsPhoto & video
Load-lifting parameters
Lifting capacity max., t90,0
Boom outreach at max. lifting capacity, m3,0
Boom outreach, m27,0
Max. loading moment, kN.m270,0
Hook lifting height max.,/with jib, m30,0/48,0
Quantity of boom sections, pcs10
Boom length, m/with jib, m30,0/48,0
Crane slewing angle/operation zone, degrees360,0/360,0
Lifting-dropping speed
Outriggers base
At width, m10,75 (front); 10,85 (rear)
Crane geometric parameters
Length, m6,43 (from rotation axis)
Width, m2,54
Height, m2,82

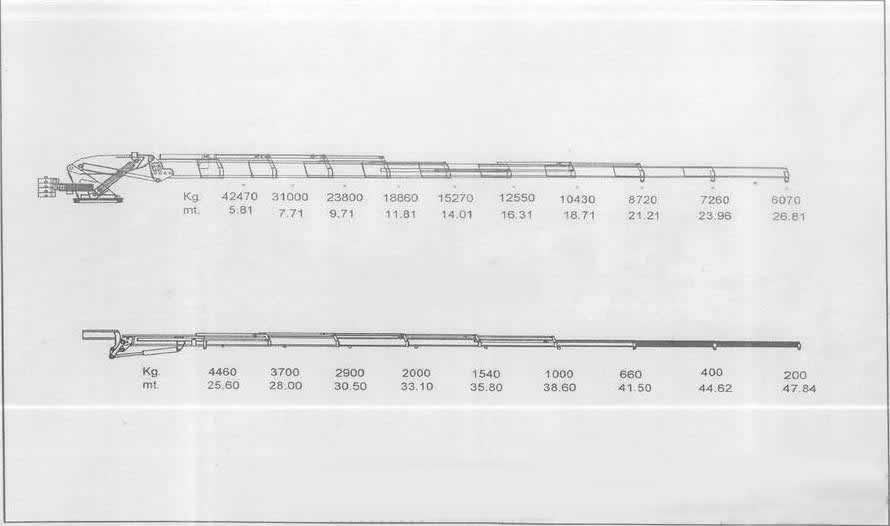

Lifting capacity chart
Lifting capacity chart 1
Lifting capacity chart 1
Advantages
  • Design and technical parameters of crane allow to operate with loads up to 90t at relevant outreach and lifting height
  • Base of 6 outriggers and 6t counterbalance provide stability of crane while operating
  • Frame, boom, outriggers and other metal parts are made of high-tensile steel DILIMAX-690 і WELDOX-1030
  • Components of leading Europian brands ensure reliability and durability of running
  • Modern design, comfort in control, simplicity of service



Options
  • Boom extension jib - increases outreach and lifting height
Photo & video

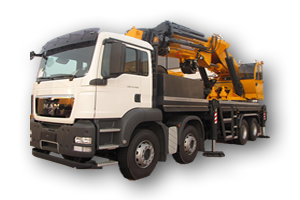

Photo 1
Photo 1
Photo 2
Photo 2
