TRUCK CRANE КТА - 25.02

Lifting capacity,t - 25

Lifting height,m - 31,9

Boom outreach,m - 26,0

Boom - four-section

Base trucks

  • Mercedes-Benz Actros 3 3332A



Technical parametersLifting capacity chartAdvantages & optionsPhoto & video
Load-lifting parameters
Lifting capacity max., t25,0
Boom outreach at max. lifting capacity, m2,5-3,3
Boom outreach, m26,0
Max. loading moment, kN.m82,5
Hook lifting height max.,/with jib, m31,9
Hook dropping depth max., m3,0 ( with load m= 50% l/c)
Quantity of boom sections, pcs4
Boom length, m30,4
Crane turning radius in move, m 10,5
Crane slewing angle/operation zone, degrees360
Lifting-dropping speed
- with load of max. weight, m/minне менше 4,5
Load landing speed, m/minне більше 0,3
Rotation speed per min0,2...0,96
Duration of outreach changing, sec45,0
Outriggers base
At length, m7,2 (6,95)
At width, m6,06 (front) х 5,8 (rear)
Crane geometric parameters
Length, m11,83
Width, m2,5
Height, m4,0

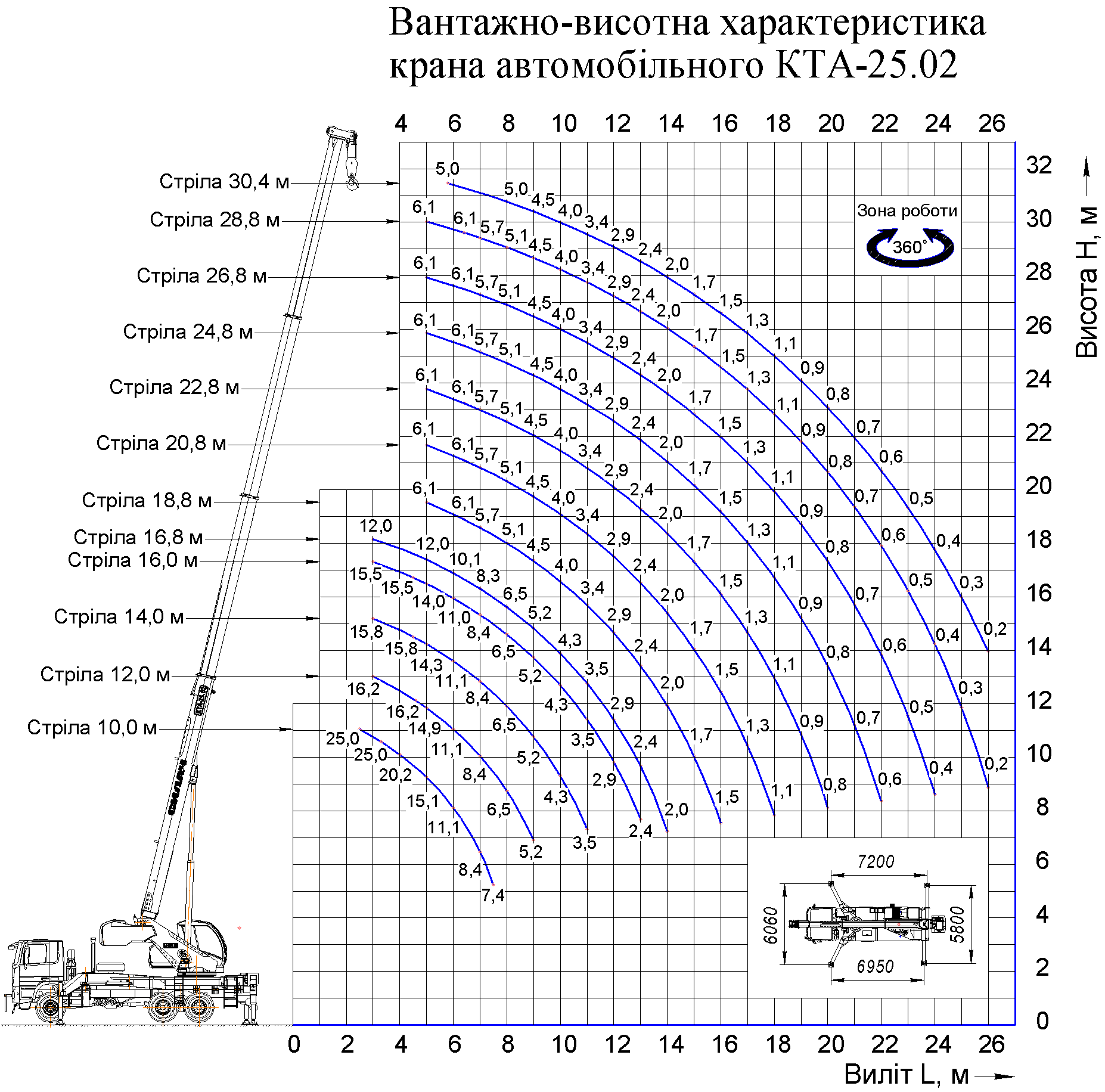

Lifting capacity chart
Lifting capacity chart 1
Lifting capacity chart 1
Advantages
Options
  • Remote radio control
    - providing wireless control of load travel,  convenient operators location, high level of safety and efficiency of        crane operation
  • Electric power off gear mechanism  (electric engine)
    - allows to reduce a financial expenses for crane running

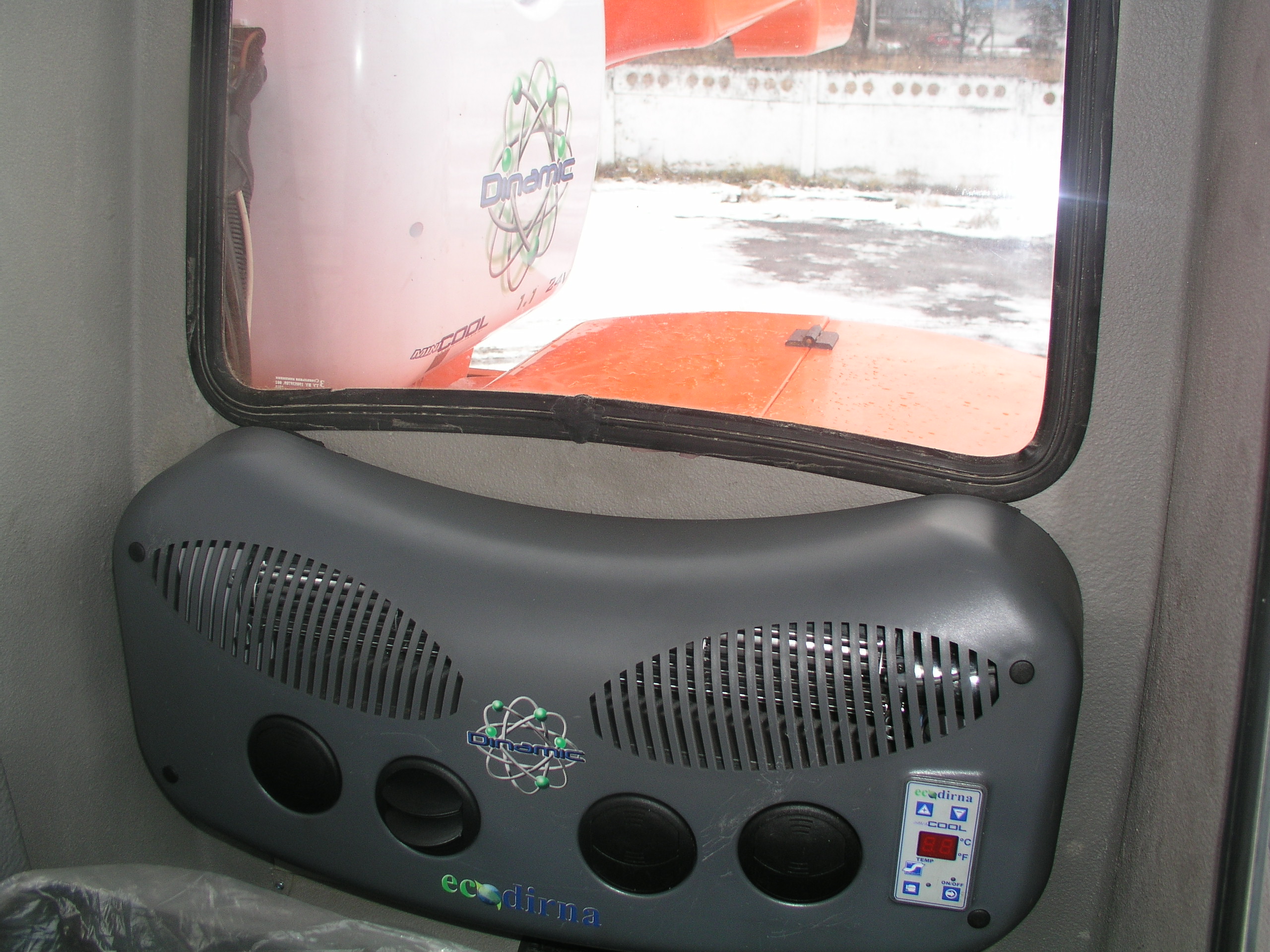

  • Air conditioner
    - making comfort for crane operator



Photo & video

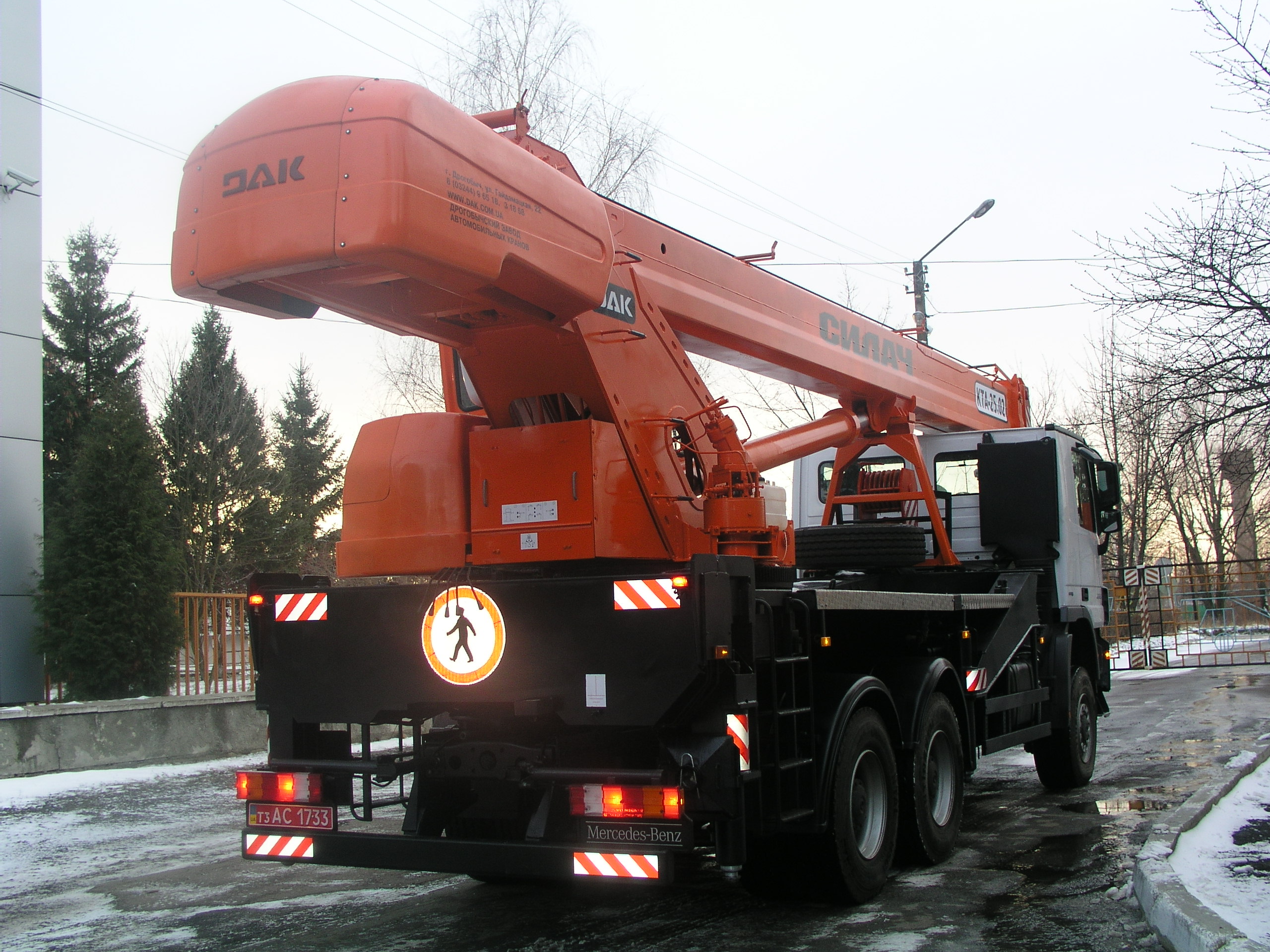

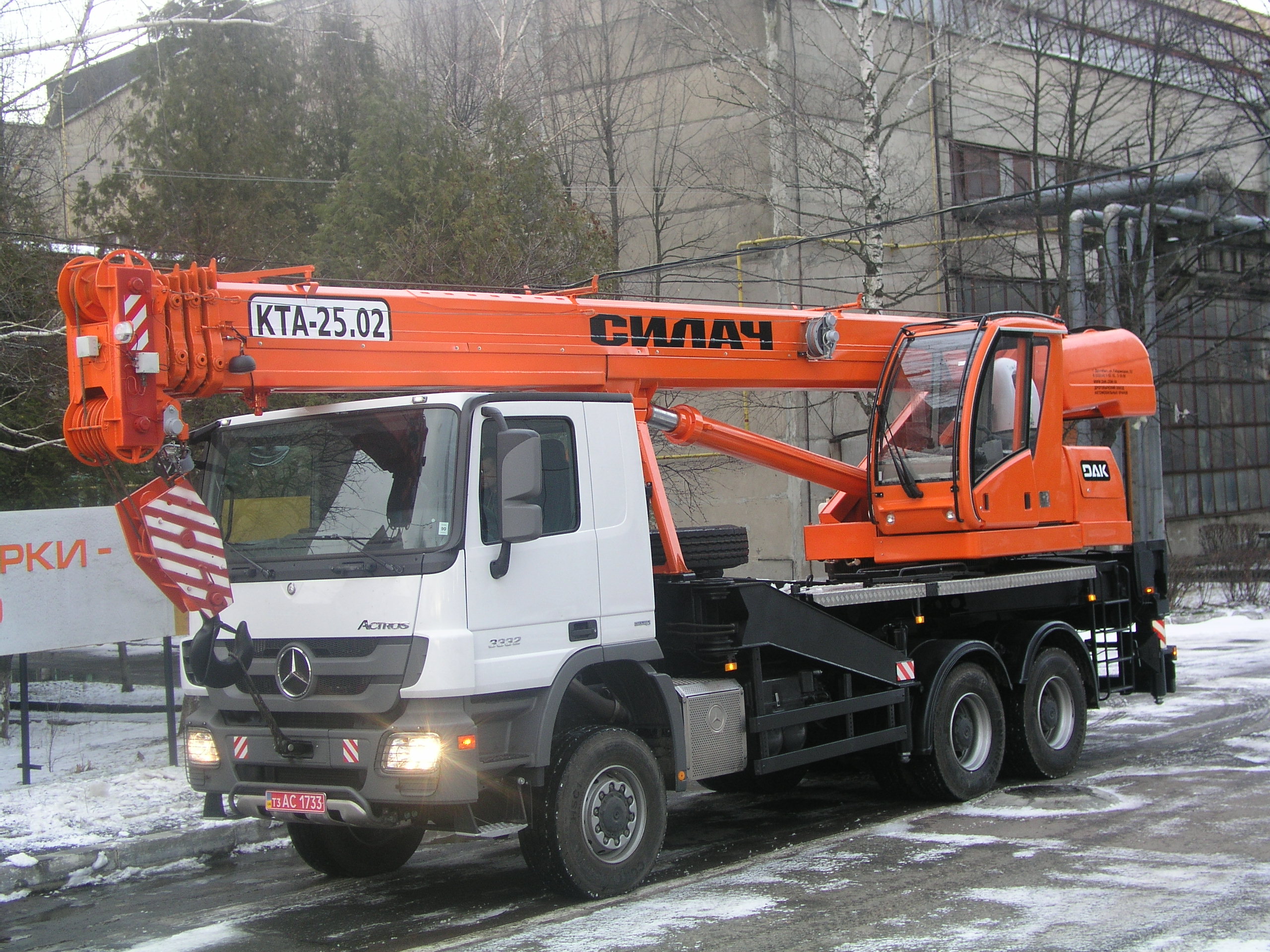

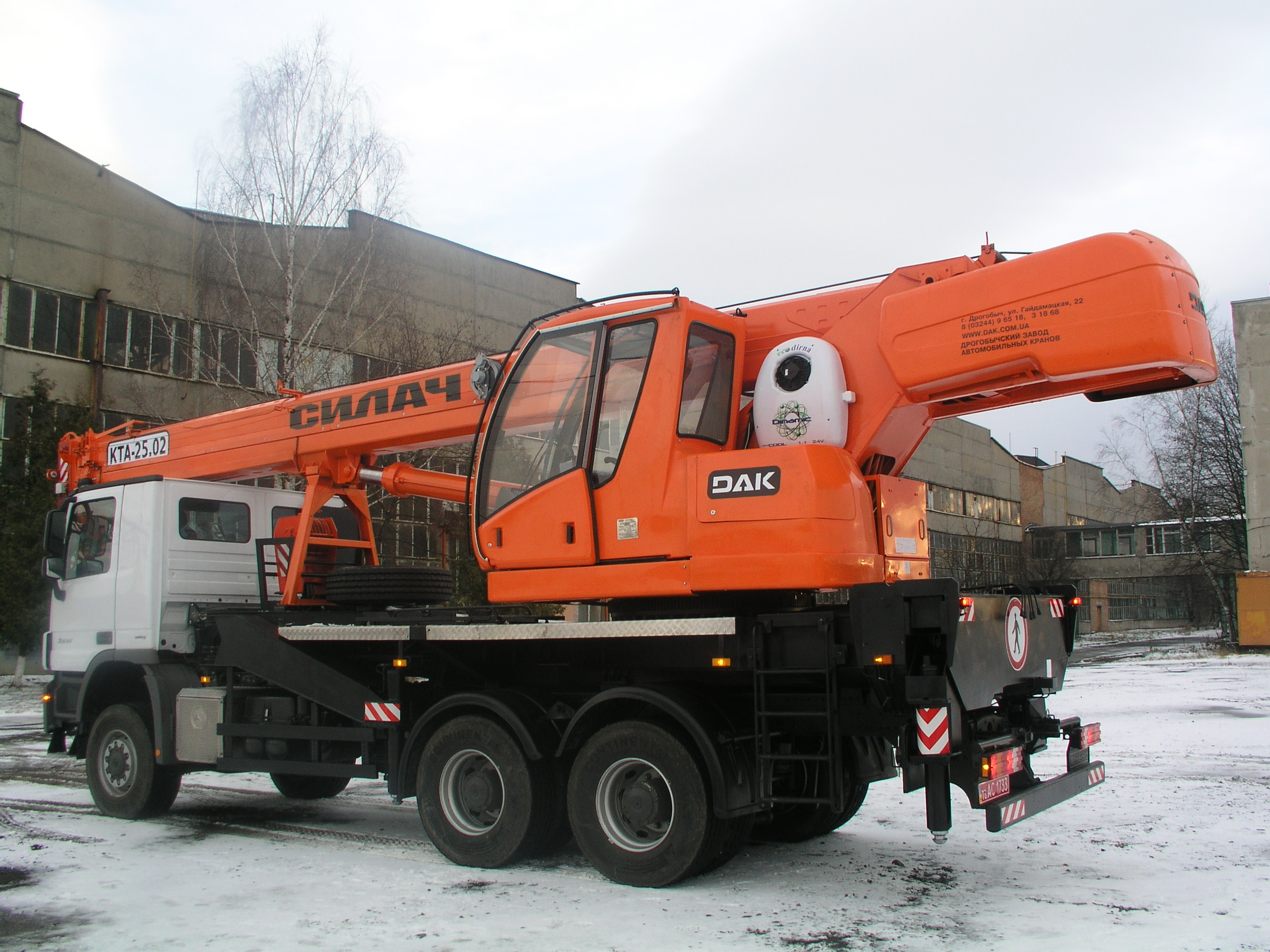

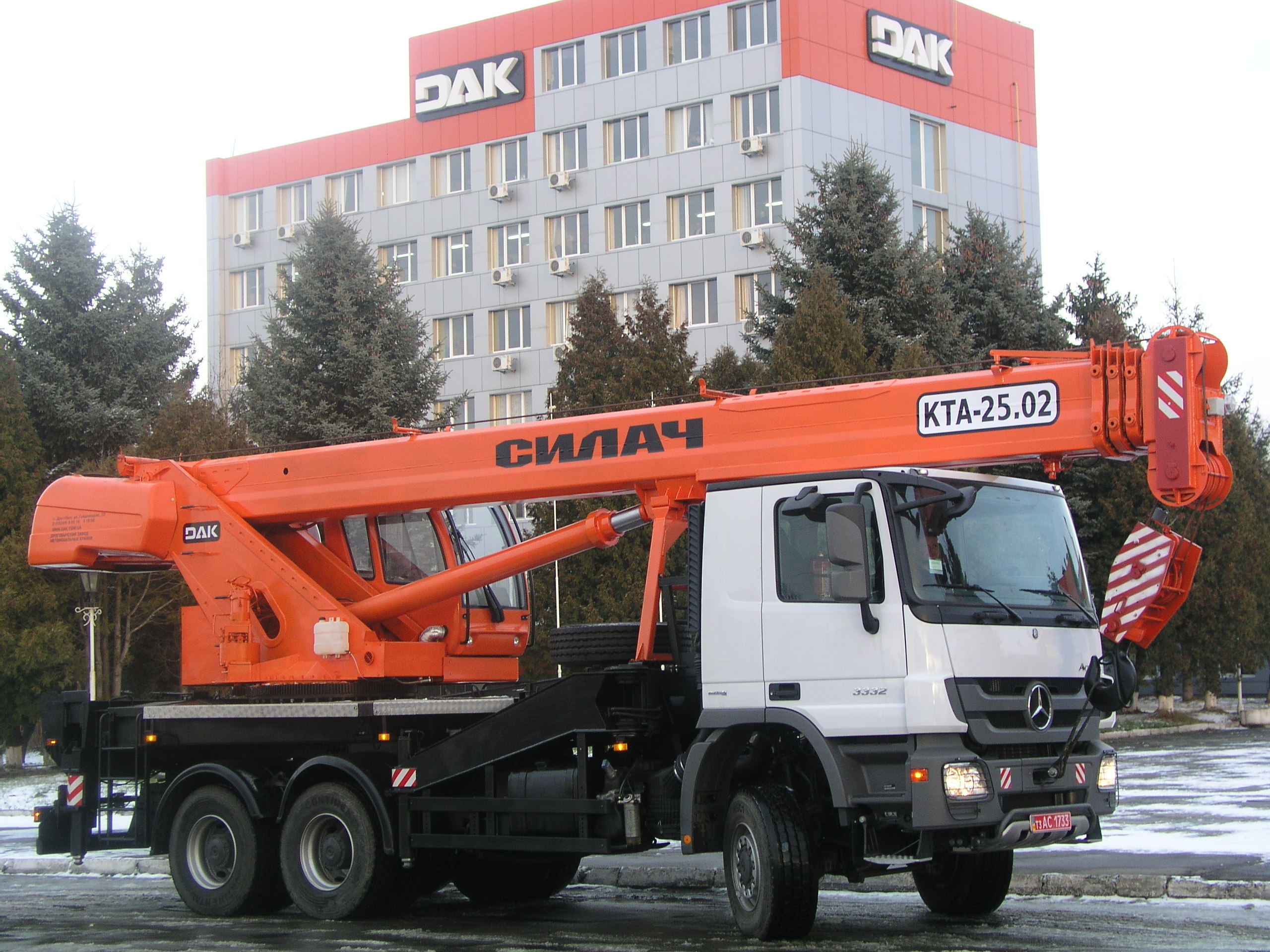

Photo 1
Photo 1
Photo 2
Photo 2
Photo 3
Photo 3
Photo 4
Photo 4
Photo 5
Photo 5
