TRUCK CRANE КТА-25Е

Lifting capacity,t-12

Lifting height,m-21,5

Boom outreach,m-2,4-18,4

Boom-three-section

Base trucks

  • МАZ (630303, 6303А3, 631236 (euro-4)
  • КАМАZ (55111, 65115, 53228, 53229)
  • КrAZ (65053, 63221)



Electric engine gear ( or power take off from chassis engine)


NEW!!!

Technical parametersLifting capacity chartAdvantages & optionsPhoto & video
Load-lifting parameters
Lifting capacity max., t12,0
Boom outreach at max. lifting capacity, m3,2
Boom outreach, m2,4-18,4
Max. loading moment, kN.m800,0
Hook dropping depth max., m7
Quantity of boom sections, pcs3
Boom length, m9,7-21,7
Crane turning radius in move, m 12,0
Crane slewing angle/operation zone, degrees360,0/240,0
Weight of crane installation, kg14300
Load weight, at which boom extraction is allowed, t13,0 (до 12,5т)
Lifting-dropping speed
- with load of max. weight, m/min6,0
- with load of weight to 4t, m/min12,0
Load landing speed, m/min0,4
Rotation speed per min1
Duration of outreach changing, sec45,0
Speed of boom sections extending (retracting), m/min 7,3
Outriggers base
At length, m3,85
At width, m4,8
Crane geometric parameters
Length, m12,0
Width, m2,5
Height, m4,0

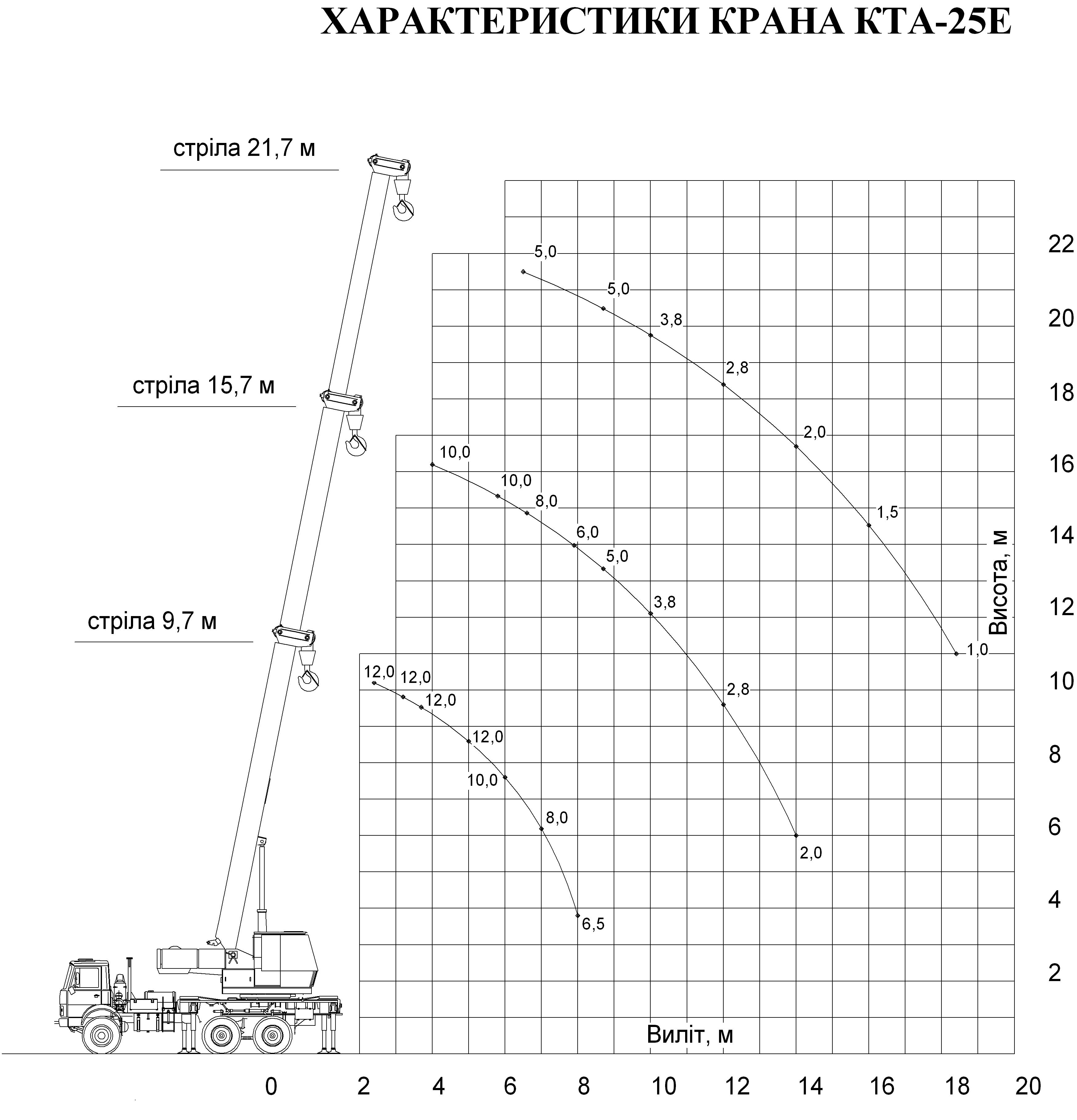

Lifting capacity chart
Lifting capacity chart 1
Lifting capacity chart 1
Advantages
  • Electric engine gear (power 30 kWt) significantly cuts expenses on truck crane operation. In normal operation regime (8 hours, 21-22 working days a month) cost saving consists about 150 000 UAH a year!



  • Telescopic  boom, produced of high quality steel with using up-to-date technologies, allows to perform
    a complete complex of lifting works, changing a length from 9,7m to 21,7m and rotation angle ranged 0-360 degrees
  • Outriggers base of optimum size and construction provides stability at operation on fully extended
    outriggers as well as on retracted ones (tight space)
  • Using in hydraulic system a compacting and pump joints of leading world brands «Simrit», «Parker» provides a
    hermeticity, reliability and durability of crane operation
  • Set of devices ПЗК-10 with microprocessor loading limitation device and telemetric memory block (black box)
    ensures safety of crane running, protecting from overloading and tipping
  • Coordinate protection system (СНЕП) blocks crane operation while reaching close to  electric wires, ensuring
    its safety and protection
  • Up-to-date design, construction and interior cabin raise efficiency of crane operation,   observability as well
    as operators  comfort



Options
  • Hydraulic distributor with electronic proportional control of «Sauer Danfoss» (joysticks control)
        - raising easiness,  smoothness and convenience of operations performance
  • Remote radio control
        - providing wireless control of load travel,  convenient operators location, high level of safety
    and efficiency of crane operation
  • Air conditioner- makes comfort for crane operator



Photo & video

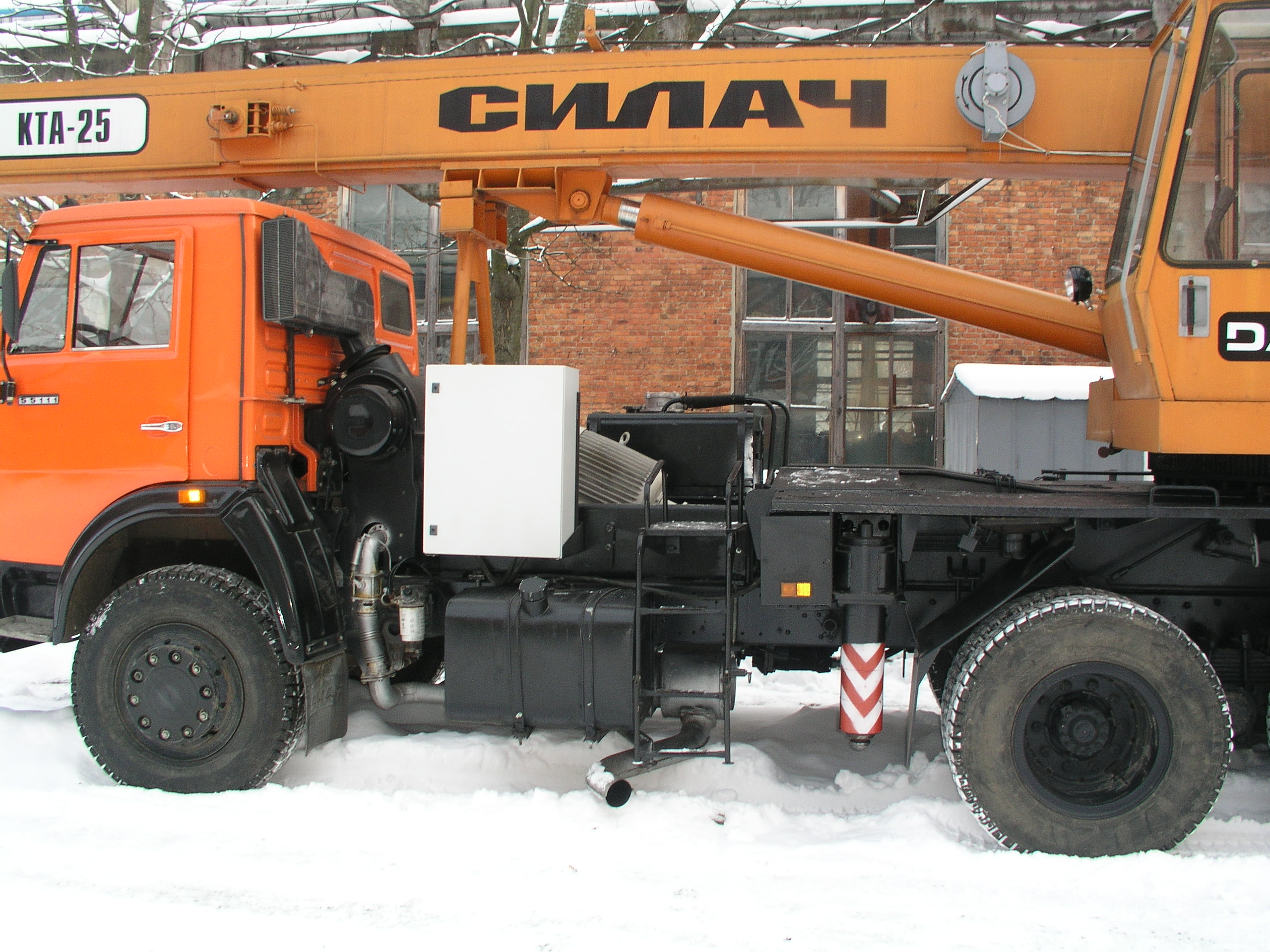

Photo 1
Photo 1

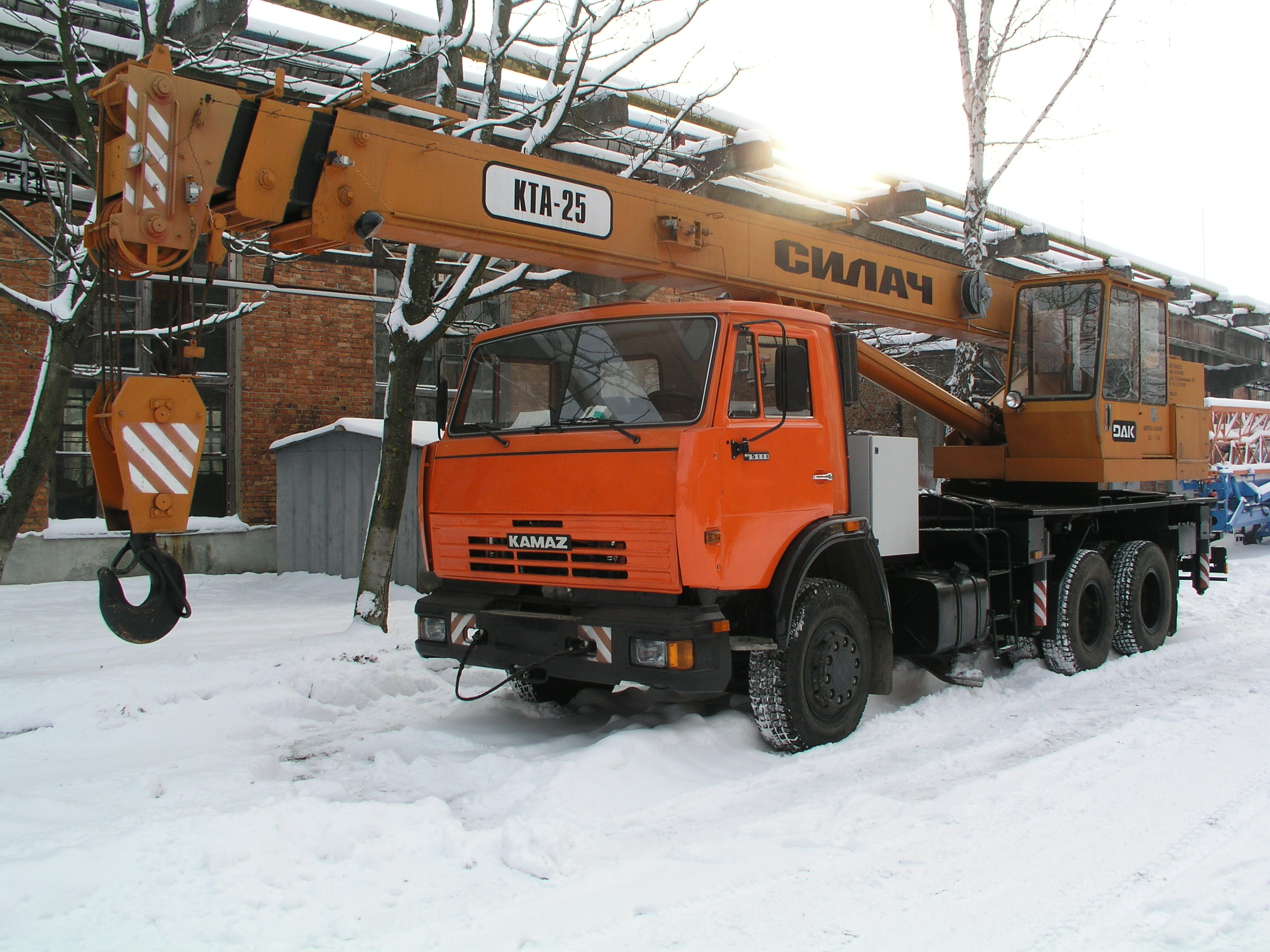

Photo 2
Photo 2

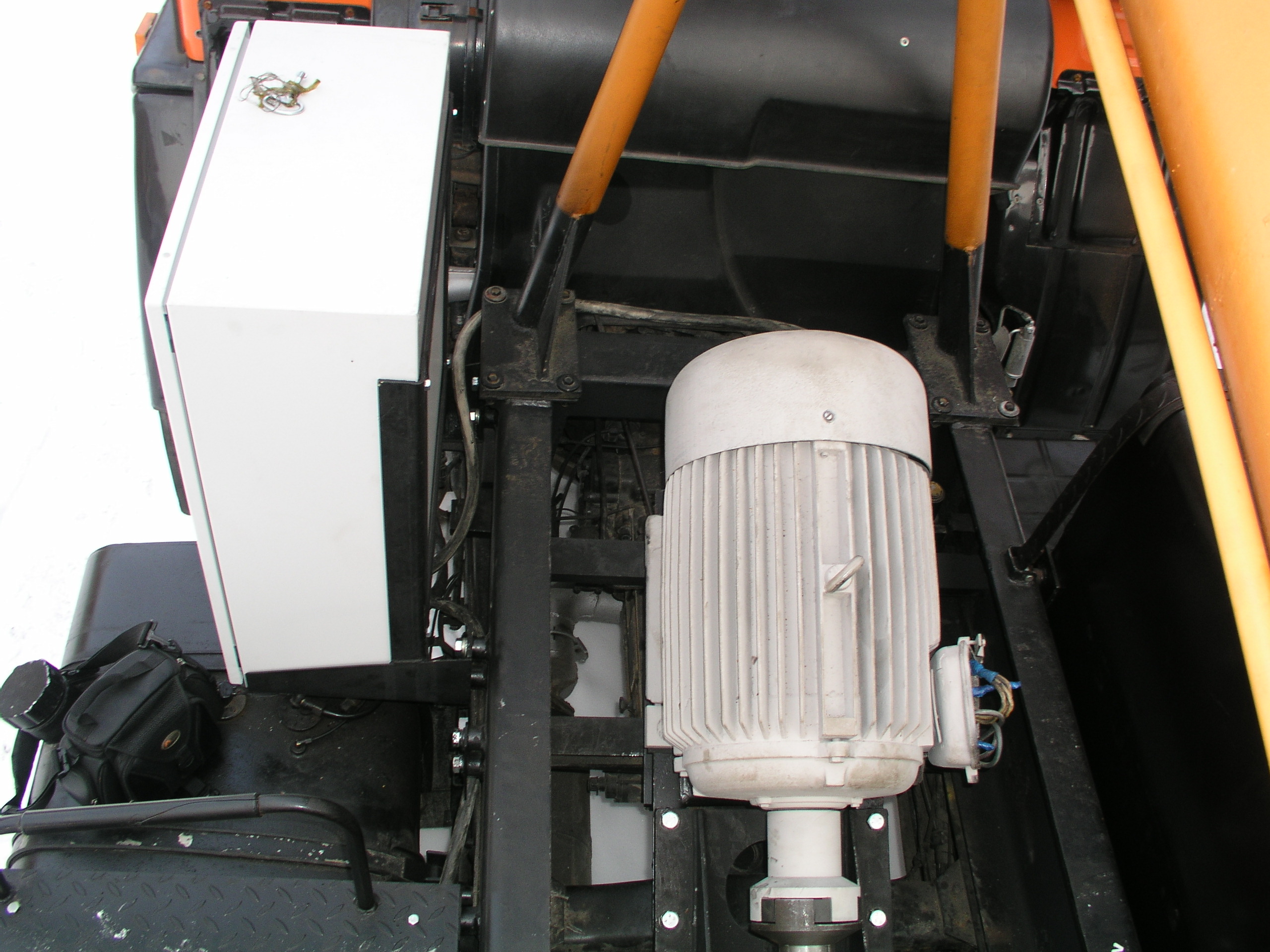

Photo 3
Photo 3

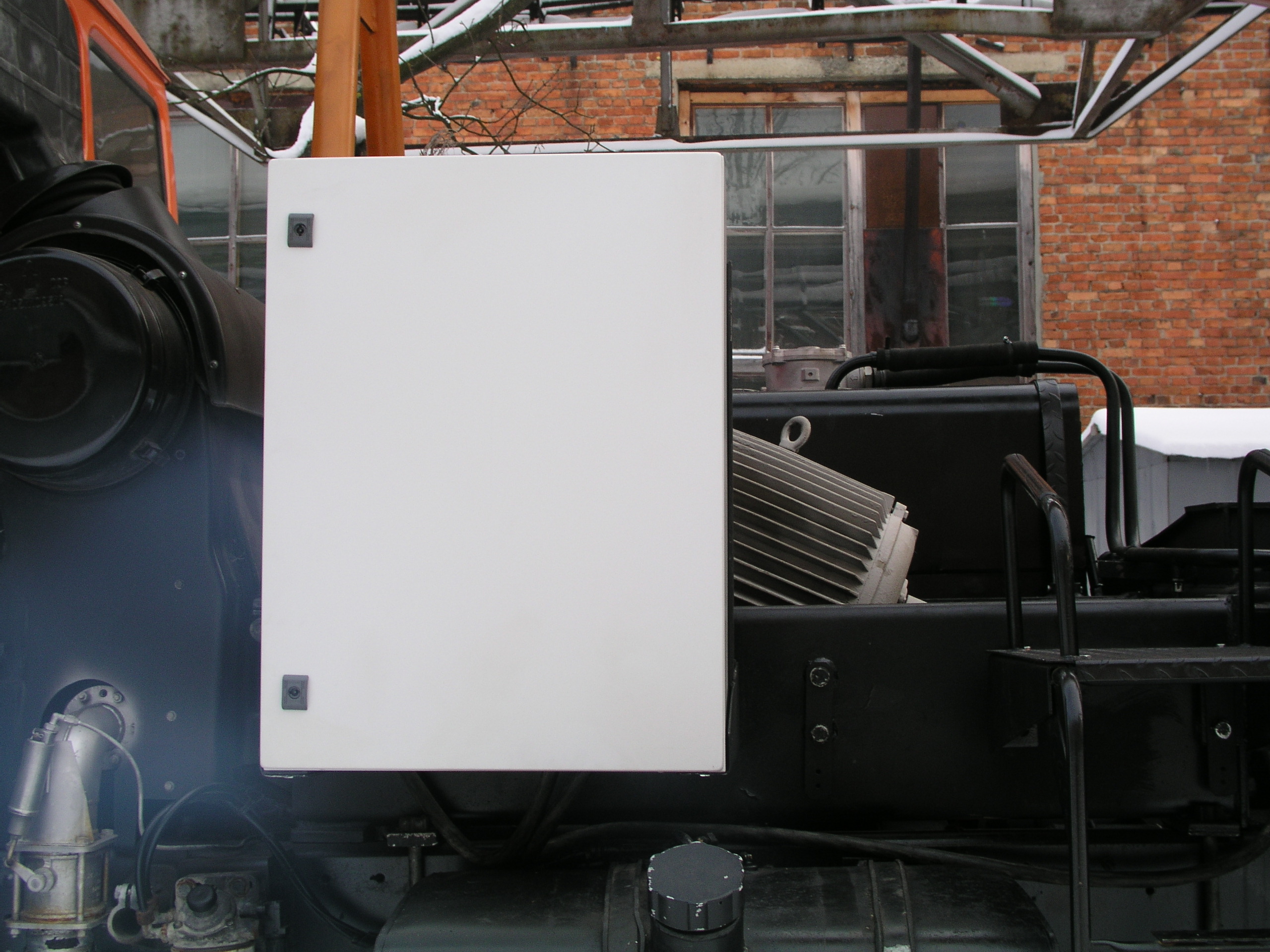

Photo 4
Photo 4
