DROGOBYCH TRUCK CRANE PLANT

LEADER OF CRANE INDUSTRY OF UKRAINE

TRUCK CRANE KTA-50

Lifting capacity,t-50

Lifting height,m-37,0

Boom outreach,m-32,0

Boom-five-section

Base trucks

  • КАМАZ (6540, 6560, 65201)
  • МZКТ (652714, 700600)
  • MAN TGS 43.430



Advantages



Technical parametersLifting capacity chartAdvantages & optionsPhoto & video
Load-lifting parameters
Lifting capacity max., t50
Boom outreach, m32,0
Max. loading moment, kN.m1500
Hook lifting height max.,/with jib, m37,0/45,0
Hook dropping depth max., m13,5 (25т на вильоті 6м (m=8)
Quantity of boom sections, pcs5
Boom length, m/with jib, m36,4/45,4
Load weight, at which boom extraction is allowed, t6,0
Lifting-dropping speed
at m=12, m/min4
at m=8, m/min6
at m=4, m/min12
at m=1, m/min40
Load landing speed, m/min0,2
Rotation speed per min0,4....1,2
Outriggers base
At length, m7,3
At width, m7,4(пер. опори)/7,1(задні опори)
Crane geometric parameters
Length, m12,0
Width, m2,5
Height, m3,95
Lifting capacity chart

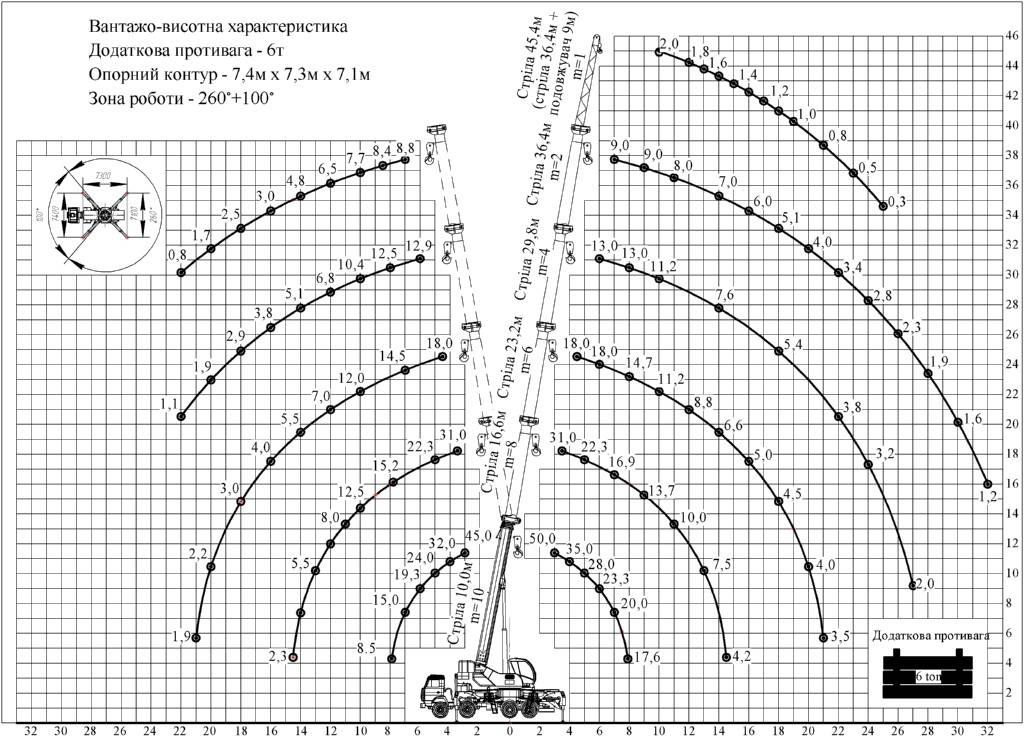

Lifting capacity chart 1
Lifting capacity chart 1
Advantages

  • Boom made of high-strength steel DOMEX S700 is more firm with improved lifting parameters and less weight

  • Reliability of crane hydraulic system and hydrocylinders operationincreases because of using sealing and pipe joints of famous world brands «Simrit», «Parker»

  • Hydraulic distributor with electronic proportional control “Sauer-Danfoss”ensures smoothness, simplicity and exactness of operations by using joysticks

  • Remote radio control system ensures wirelessmove of loads, any comfortable location of crane operator as well as high level of safety and operation efficiency

  • Ergonomic cabin of modern design significantly improves efficiency of crane operation, ensures excellent visibility and comfort for operator




Options
Photo & video

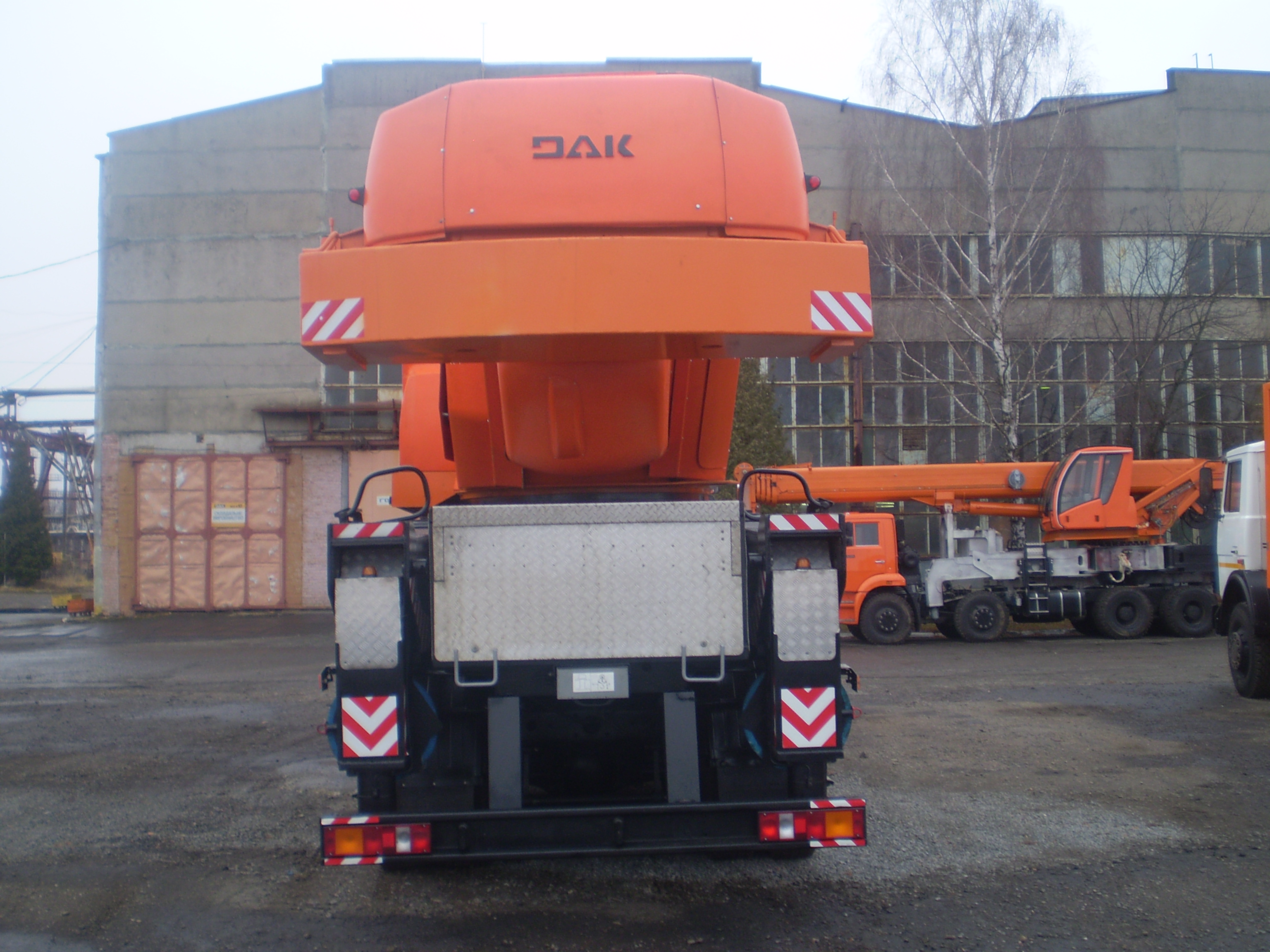

Photo 1
Photo 1

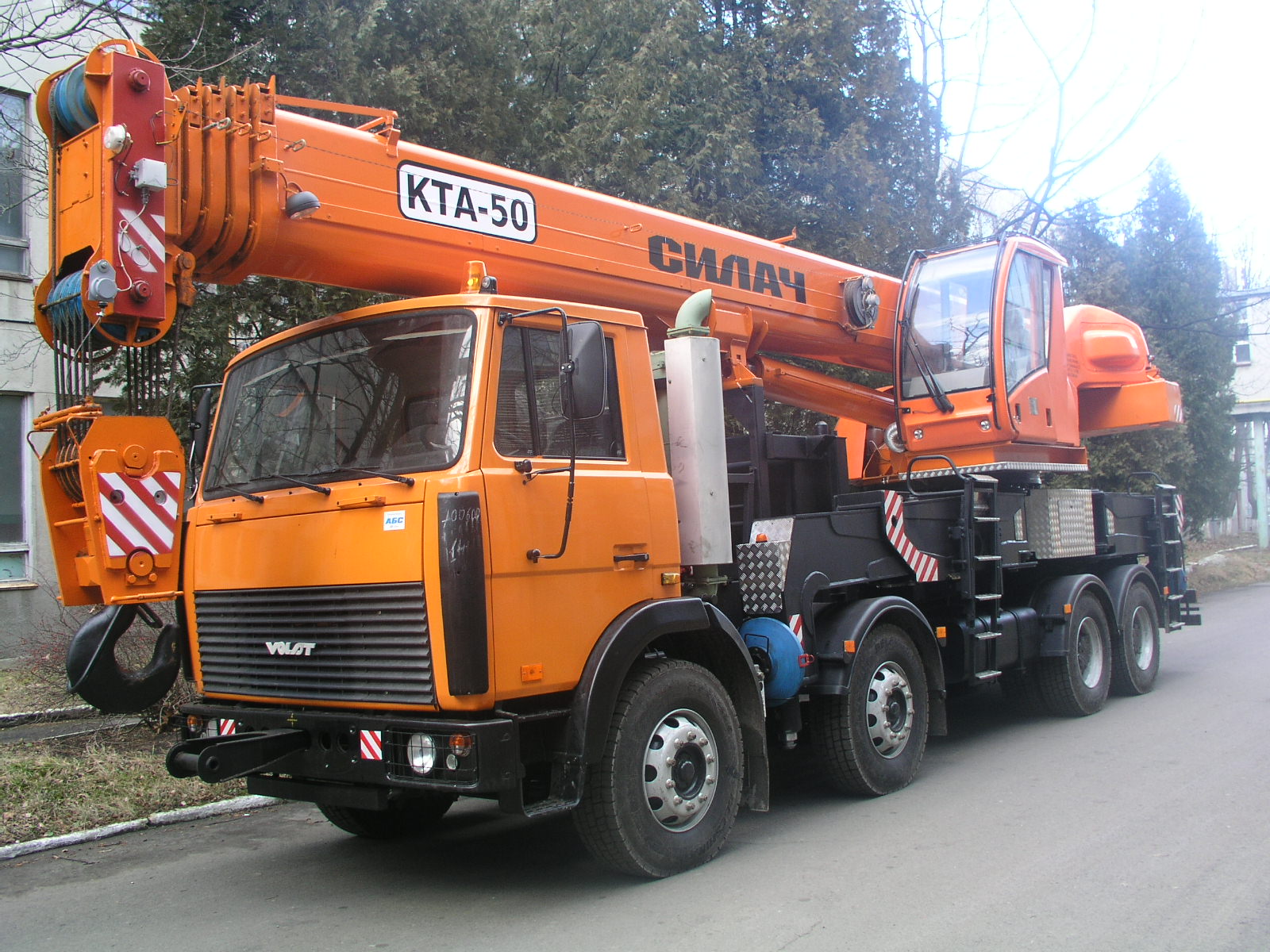

Photo 2
Photo 2

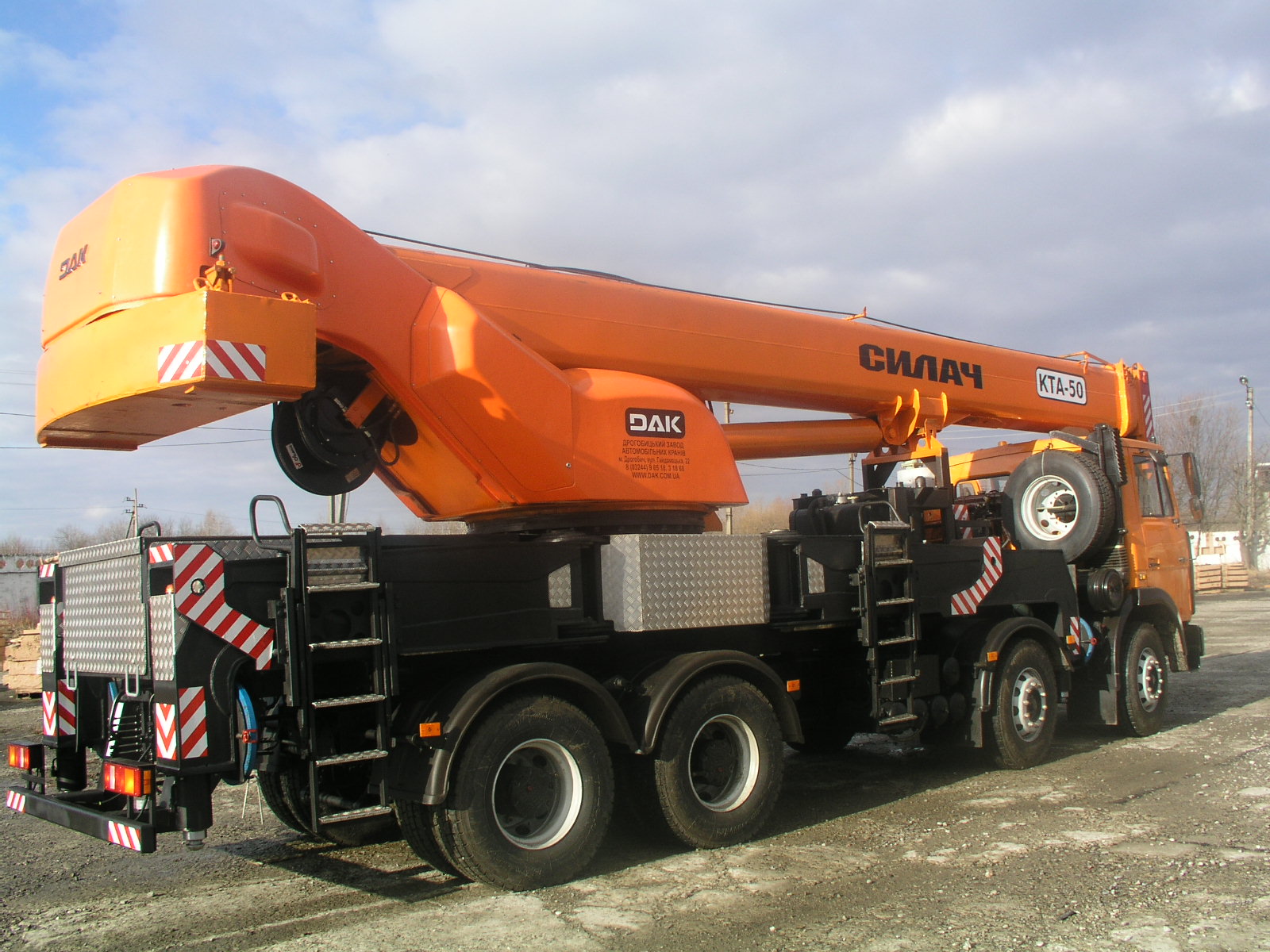

Photo 3
Photo 3

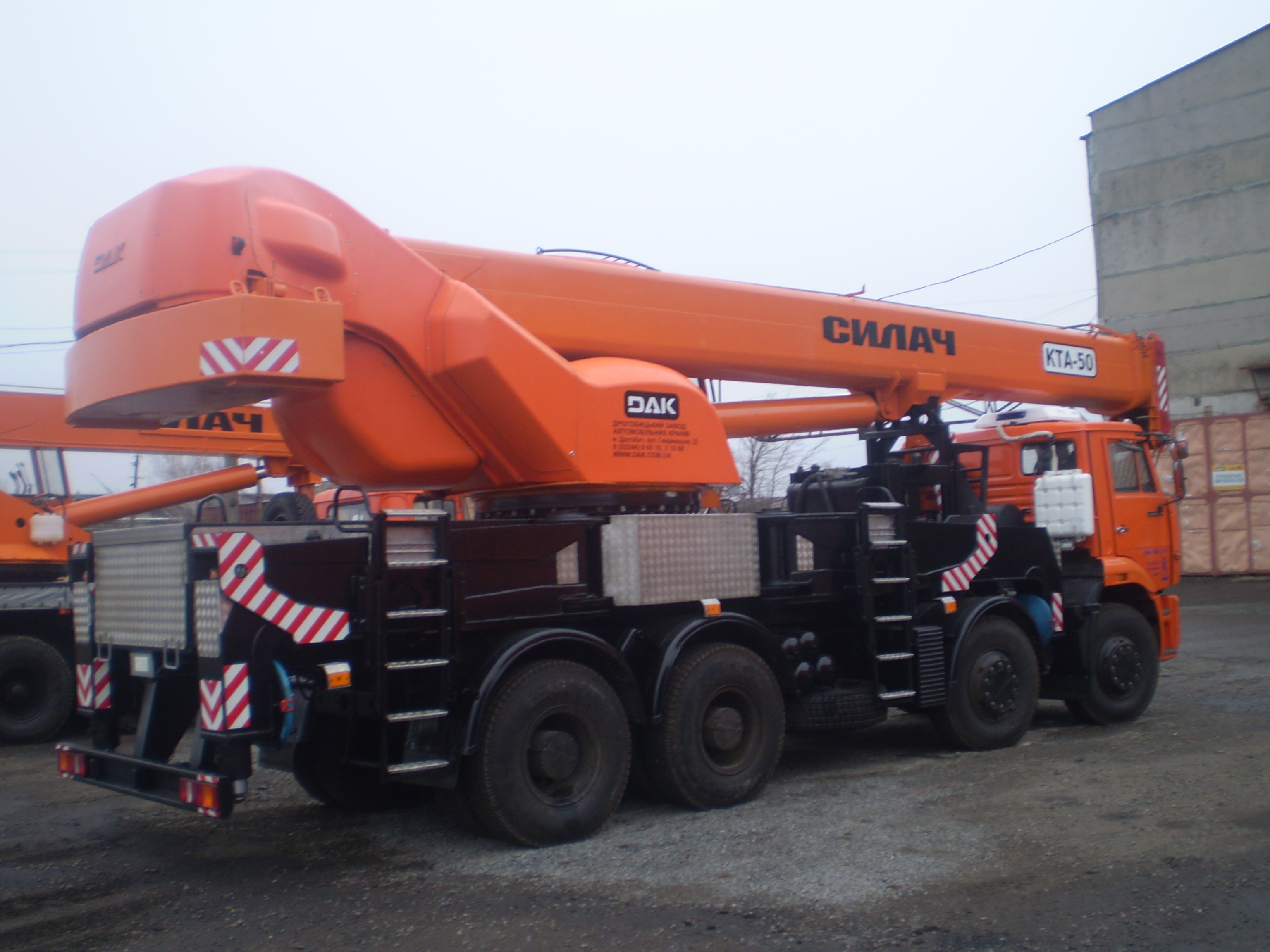

Photo 4
Photo 4

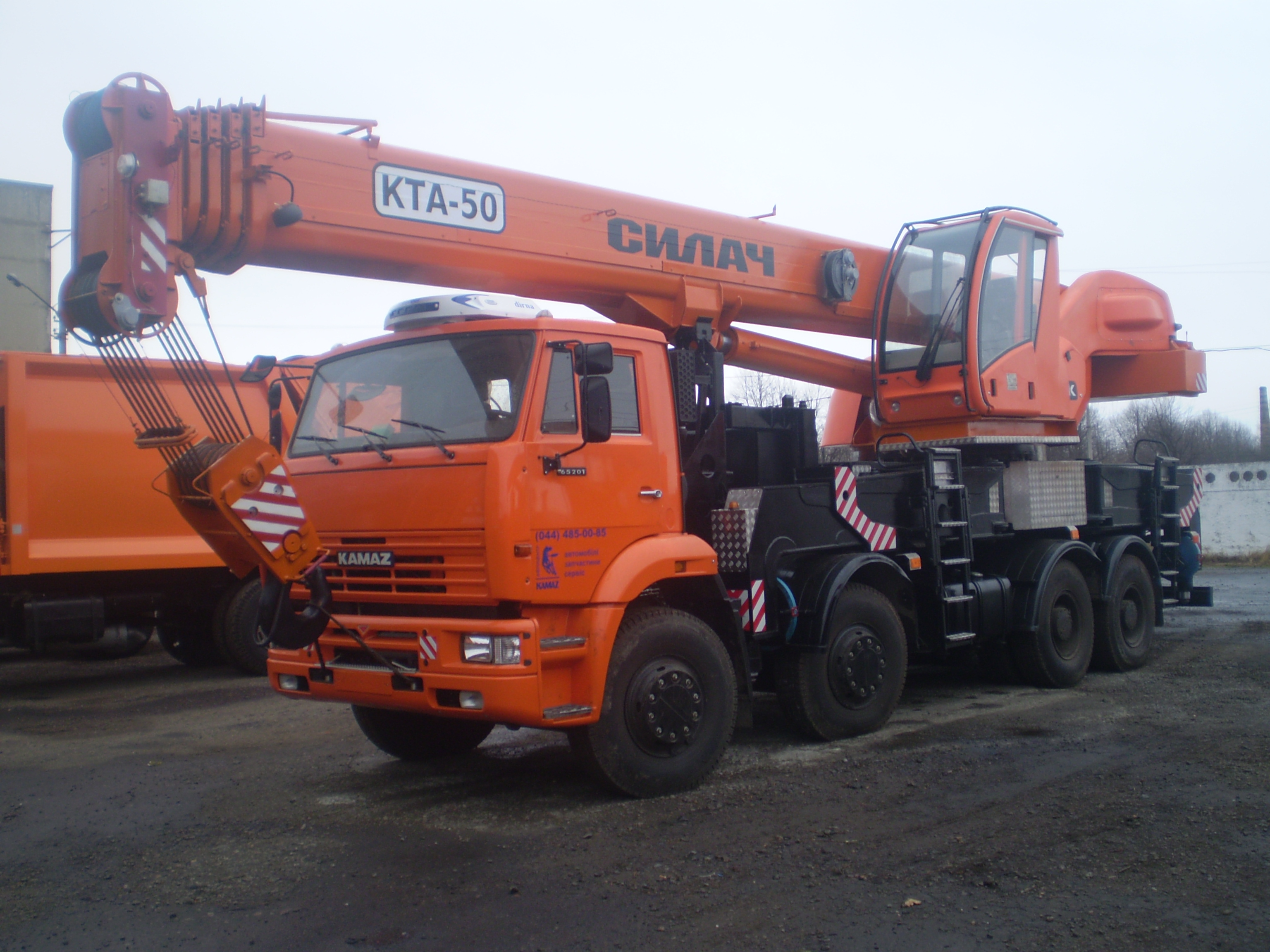

Photo 5
Photo 5
