DROGOBYCH TRUCK CRANE PLANT

Poll

Lifting capacity,t - 18
Lifting height,m - 20,3
Boom outreach,m - 2,85-18,2
Boom - three-section

Base trucks

Technical parametersLifting capacity chartAdvantages & optionsPhoto & video

Load-lifting parameters

Lifting capacity max., t	18,0
Boom outreach at max. lifting capacity, m	2,85-3,0
Boom outreach, m	2,85-18,2
Max. loading moment, kN.m	540,0
Hook dropping depth max., m	13,0 (до 9т)
Quantity of boom sections, pcs	3
Boom length, m	9,0-21,0
Crane turning radius in move, m	12,0
Crane slewing angle/operation zone, degrees	360,0/240,0
Weight of crane installation, kg	11400

Lifting-dropping speed

- with load of max. weight, m/min	7,0
- with load of weight to 4t, m/min	14,0
Load landing speed, m/min	0,3
Rotation speed per min	1,2
Duration of outreach changing, sec	40,0
Speed of boom sections extending (retracting), m/min	8,0

Outriggers base

At length, m	3,85
At width, m	4,8

Crane geometric parameters

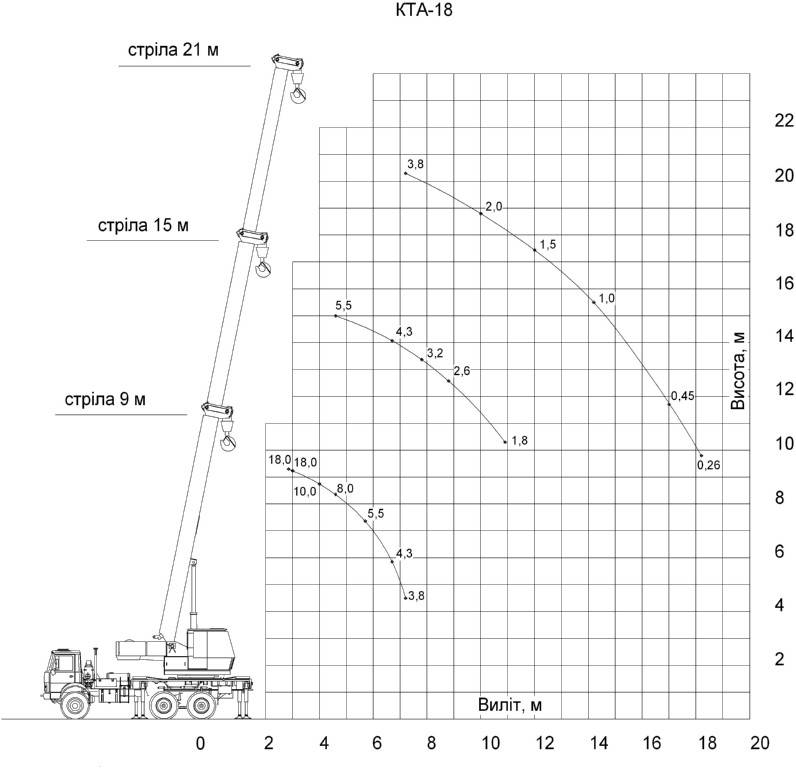

Lifting capacity chart

Lifting capacity chart 1

Advantages

Telescopic boom, produced of high quality steel with using up-to-date technologies, allows to perform
a complete complex of lifting works, changing a length from 9,7m to 21,7m and rotation angle ranged 0-360 degrees
Outriggers base of optimum size and construction provides stability at operation on fully extended
outriggers as well as on retracted ones (tight space)
Using in hydraulic system a compacting and pump joints of leading world brands «Simrit», «Parker» provides a
hermeticity, reliability and durability of crane operation
Set of devices ПЗК-10 with microprocessor loading limitation device and telemetric memory block (black box)
ensures safety of crane running, protecting from overloading and tipping
Coordinate protection system (СНЕП) blocks crane operation while reaching close to electric wires, ensuring
its safety and protection
Up-to-date design, construction and interior cabin raise efficiency of crane operation, observability as well
as operators comfort

Options

Hydraulic distributor with electronic proportional control of «Sauer Danfoss» (joysticks control)
- raising easiness, smoothness and convenience of operations performance
Remote radio control
- providing wireless control of load travel, convenient operators location, high level of safety
and efficiency of crane operation
Electric power off gear mechanism (electric engine)
- allows to reduce a financial expenses for crane running
Air conditioner- makes comfort for crane operator

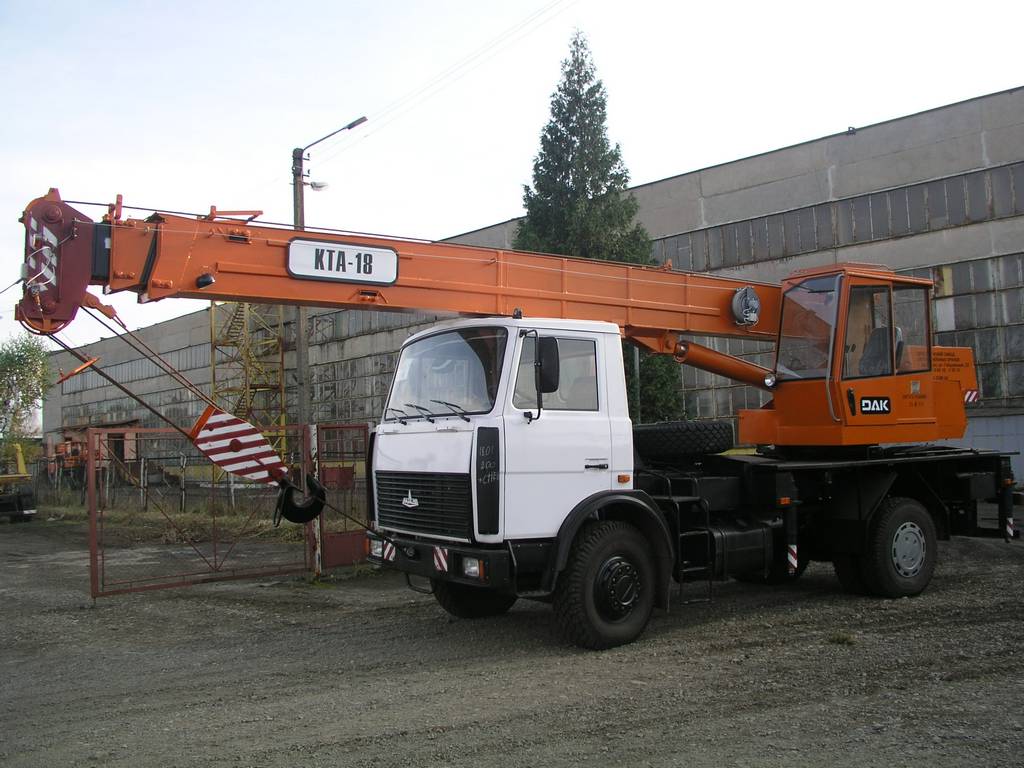

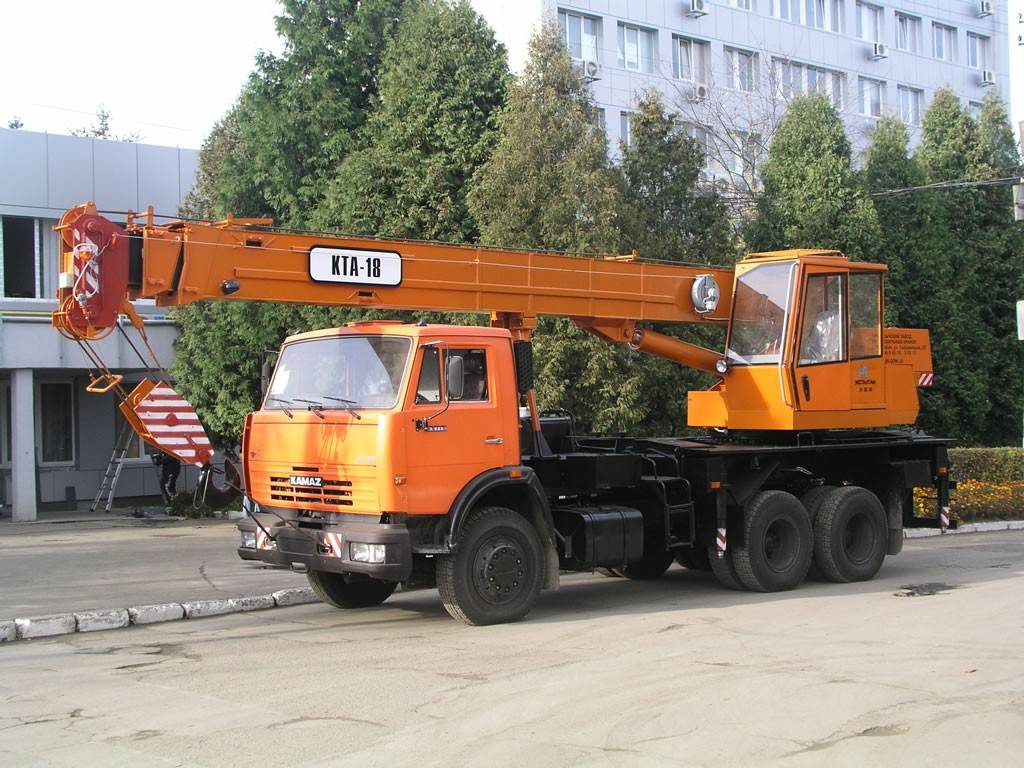

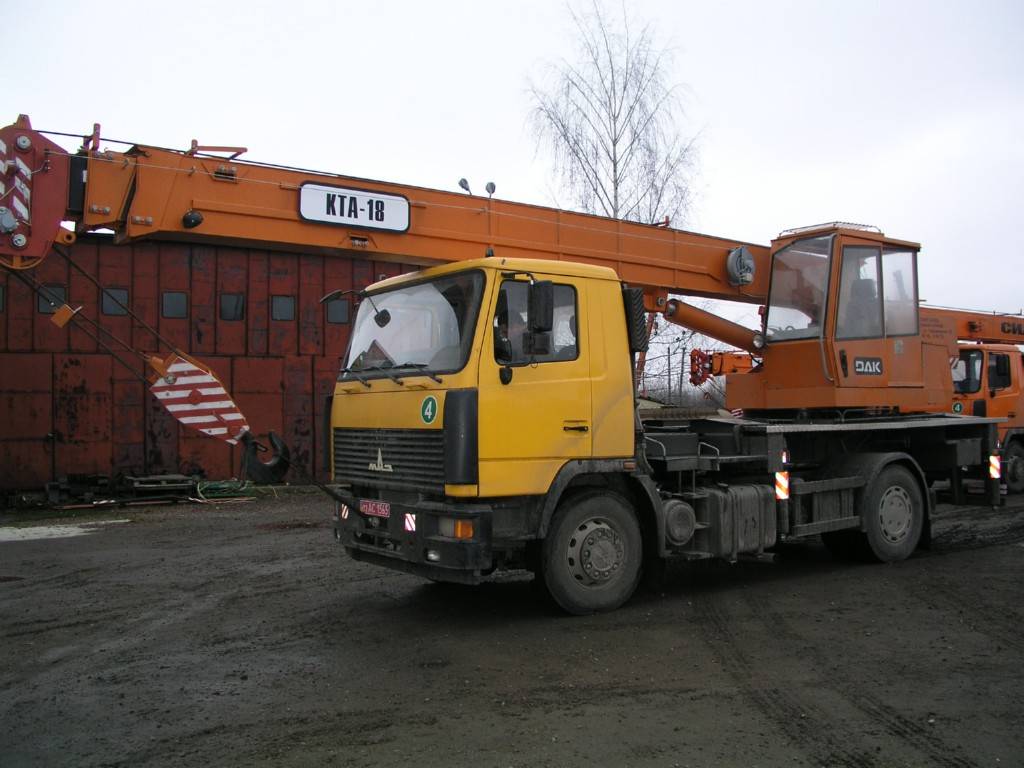

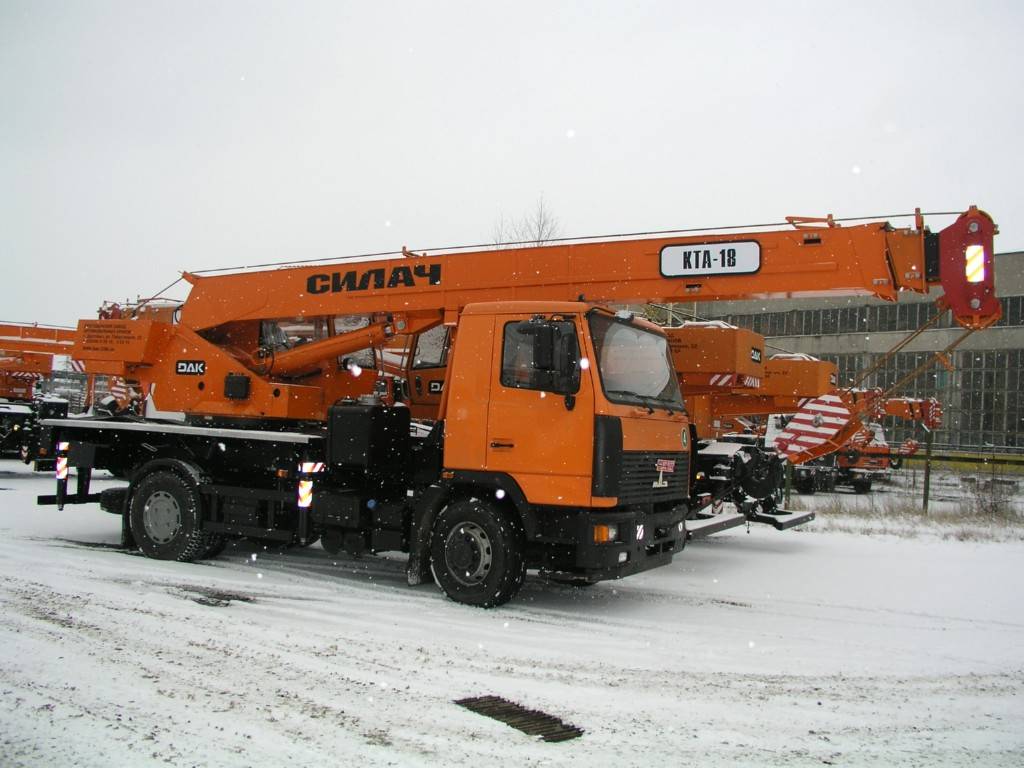

Photo & video
